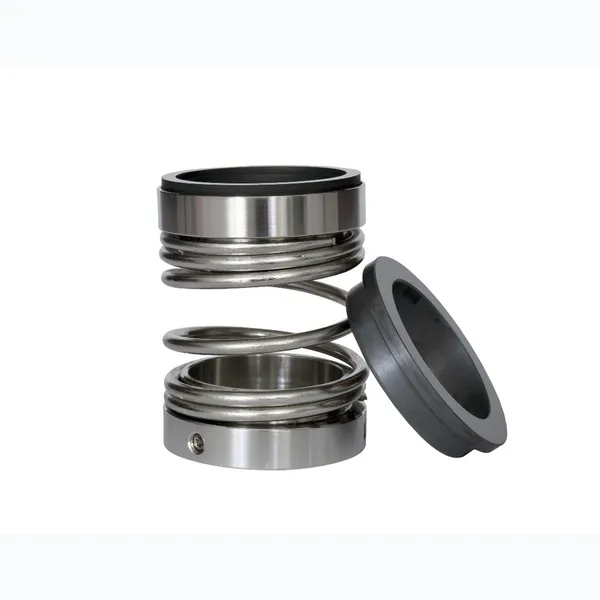

Single Spring Mechanical Seals

Single Spring Mechanical Seals Spring Seals

Unbalanced single coil spring seals in elastomer bellow and clutch designs. Elastomer bellow versions cover 20-75mm shafts; clutch versions cover 20-100mm, including a PTFE / GFT secondary version rated to 250°C. Used in chemical plants, oil refineries, textile and water service.

Specifications

Size20–100 mm
Temperature−25 °C to 250 °C
Pressure10 kg/cm²

Materials of Construction

Seal FacesCarbon, Silicon, TC, Ceramic, SS
Metal PartsSS304, SS316, SS316L

Available Variants (4)

Specifications as listed in the FLUID PROOF product catalogue.

Select a variant

Single Spring Elastomer Bellow Unbalanced Seal

Single Spring Elastomer Bellow Unbalanced Seal

Seal Size
20 mm to 75 mm
Pressure
10 kg/cm²
Speed
13 m/s
Temperature
−20 °C to 200 °C
Rotary FaceCarbon, Silicon, TC
Stationary SeatCeramic, Silicon, TC, SS
Seat TypeS-60, S-6, S-9, S-4, S-50
Secondary SealsViton, NBR, EPDM, Silicon
Metal PartsSS304, SS316
ApplicationChemical, Oil Refinery, Water
