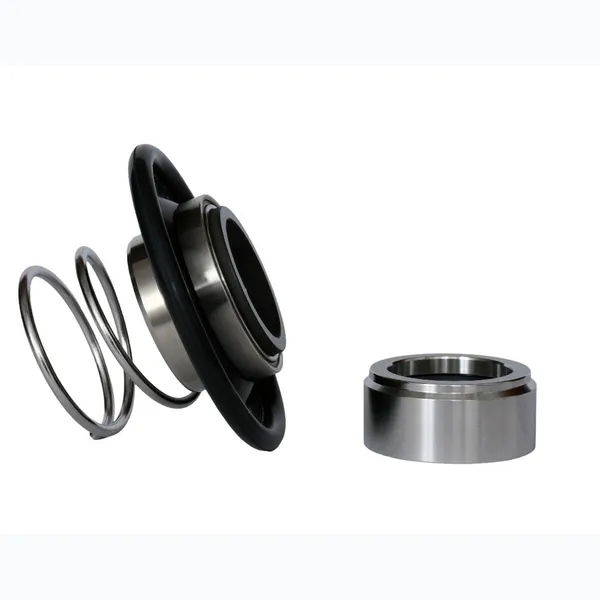

Conical Spring Mechanical Seals

Conical Spring Mechanical Seals Spring Seals

Conical spring seals in elastomer bellow, balanced and unbalanced designs. Shaft sizes from 12mm to 100mm at up to 12 kg/cm², with Viton, NBR, EPDM, Silicon or PTFE secondary seals. Used in chemical plants, oil refineries, paper mills, sugar plants and water service.

Specifications

Size12–100 mm
Temperature−25 °C to 200 °C
Pressureup to 12 kg/cm²

Materials of Construction

Seal FacesCarbon, Silicon, TC, Ceramic, SS
Metal PartsSS304, SS316, SS316L

Available Variants (5)

Specifications as listed in the FLUID PROOF product catalogue.

Select a variant

Conical Spring Elastomer Bellow Unbalanced Seal

Conical Spring Elastomer Bellow Unbalanced Seal

Seal Size
15 mm to 100 mm
Pressure
12 kg/cm²
Speed
10 m/s
Temperature
−10 °C to 180 °C
Rotary FaceCarbon, Silicon, TC
Stationary SeatSilicon, TC, SS, Ceramic
Seat TypeS-60, S-50, S-55, S-6, S-9
Secondary SealsViton, NBR, EPDM, Silicon
Metal PartsSS304, SS316, SS316L
ApplicationChemical Plant, Oil Refinery, Paper Mill
