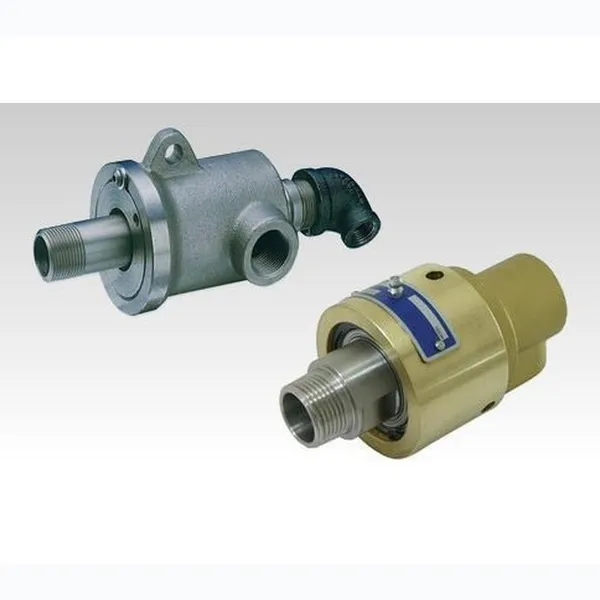

Rotary Joints & Unions

Rotary Joints & Unions Rotary Equipment

Rotary unions for carrying water, steam and hot oil into rotating equipment, built in CI, brass and stainless steel with aluminium. The range covers water up to 50 bar (750 PSI), steam up to 17 bar, hot oil up to 232°C and speeds up to 3,500 RPM, including a version for the rubber and plastic industry.

Pressure
up to 50 bar (water)
Temperature
up to 232 °C (hot oil)
Speed
up to 3,500 RPM

Materials of Construction

  • CI, Brass, SS + Aluminium

Available Variants (8)

Specifications as listed in the FLUID PROOF product catalogue.

Select a variant

Rotary Union, Models 55-555 / 655

Rotary Union, Models 55-555 / 655

Temperature
200 °F
Max Water Pressure750 PSI / 50 bar (Model 55-555); 600 PSI / 41 bar (Model 655)
Max Saturated Steam Pressure (Intermittent)15 PSI / 1 bar
Max Hot Oil Pressure100 PSI / 6.6 bar
Max Speed, NPT Threads1,500 RPM (Model 55-555); 750 RPM (Model 655)
Max Speed, Straight Threads3,500 RPM (55-255); 3,000 RPM (355); 2,500 RPM (525-555); 750 RPM (655)
MaterialCI, Brass and SS + Aluminium
