Double Mechanical Seals

Double Mechanical Seals Specialty Seals

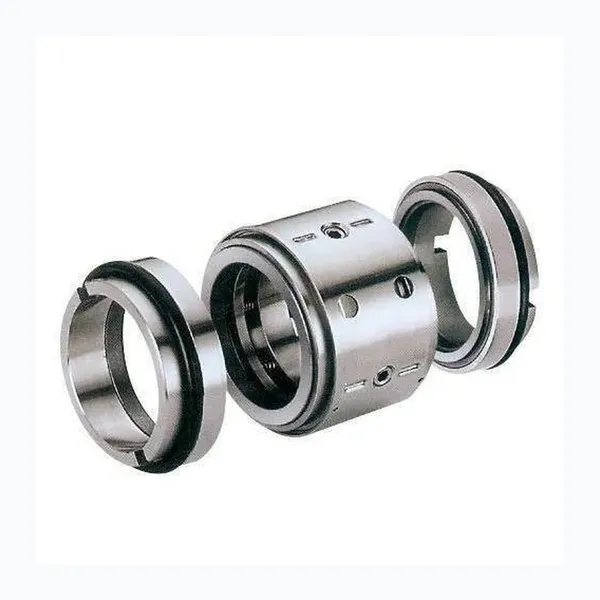

Double mechanical unbalanced seal with SS housing, SS support ring and key washer. Available for 22mm, 30mm and 35mm shafts at up to 10 kg/cm². Used in chemical plants, oil refineries and dairy service. For agitators and vessels, see Agitator Mechanical Seals.

Specifications

Size22, 30, 35 mm
Temperature−15 °C to 140 °C
Pressure10 kg/cm²

Materials of Construction

Seal FacesCarbon, Silicon, TC, Ceramic, SS
Metal PartsSS304, SS316, SS316L

Available Variants

Specifications as listed in the FLUID PROOF product catalogue.

Double Mechanical Unbalanced Seal

Seal Size
22 mm, 30 mm, 35 mm
Pressure
10 kg/cm²
Speed
10 m/s
Temperature
−15 °C to 140 °C
Rotary FaceCarbon, Silicon, TC
Stationary SeatSilicon, TC, SS, Ceramic
Seat TypeH-Type, L-Type
Secondary SealsViton, NBR, EPDM, Silicon, PTFE
Metal PartsSS304, SS316, SS316L
ApplicationChemical Plant, Oil Refinery, Dairy
