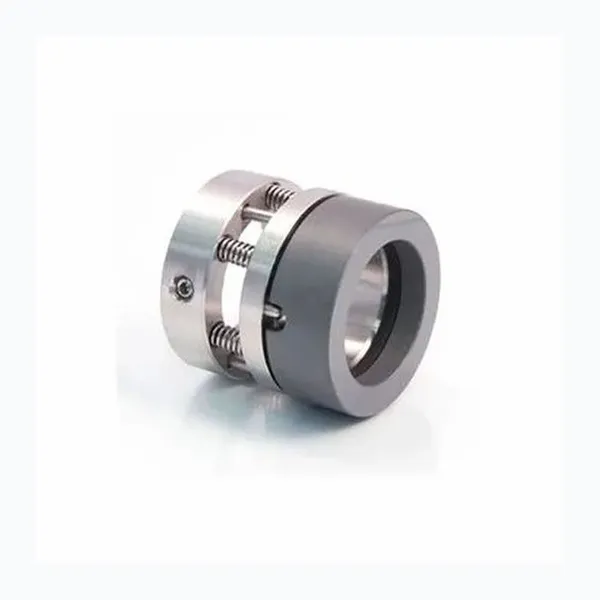

Metal Bellow Mechanical Seals

Metal Bellow Mechanical Seals Bellow Seals

Metal bellow seals in balanced and unbalanced designs, loaded by a metal bellow spring in place of coil springs. For 25mm to 100mm shafts at up to 10 kg/cm² and 20 m/s, rated from -20°C to 250°C. PTFE, Viton and Grafoil secondary seals for chemical plants and oil refineries.

Specifications

Size25–100 mm
Temperature−20 °C to 250 °C
Pressure10 kg/cm²

Materials of Construction

Seal FacesCarbon, Silicon, TC, Ceramic, SS
Metal PartsSS304, SS316, SS316L

Available Variants (2)

Specifications as listed in the FLUID PROOF product catalogue.

Select a variant

Metal Bellow Balanced Seal

Metal Bellow Balanced Seal

Seal Size
25 mm to 100 mm
Pressure
10 kg/cm²
Speed
20 m/s
Temperature
−20 °C to 250 °C
Rotary FaceCarbon, Silicon
Stationary SeatSilicon, TC, SS, Ceramic
Seat TypeS-6, S-9, S-4, S-13, S-50
Secondary SealsPTFE, Viton, Grafoil
Metal PartsSS304, SS316, SS316L
ApplicationChemical Plant, Oil Refinery
